12 Inch high power 100mm/s motor Linear Actuator for electrical equipment

12 Inch high power 100mm/s motor Linear Actuator for electrical equipment

  • Min.Order Quantity: 100 Sets
  • Supply Ability: 30000 Sets per Month
  • Port: Shanghai,China
  • Payment Terms: L/C,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-11-26
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  0.3*0.1*0.08
  • Place of Origin:  Shanghai,China
  • Brand Name:  Runhu
  • Model Number:  HB-DJ806
  • Weight: 0.300 kg

12 Inch high power 100mm/s motor Linear Actuator for electrical equipment

1.CE approved
2.push and pull
3.waterproof
4.Compact and powerful
5.high-speed avaliable



Detailed Product Description

1.Low-noise Linear Actuator

2.competitive price

3.Best quality

4. CE certi

5. mini stroke size

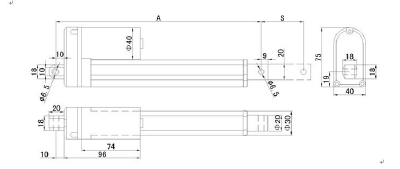

Reference drawing

The accurate drawing willl be sent to you.After conformation.






Specification of Linear Actuator(Model No.:HB-DJ806)

Input Voltage

12V/24V/36V/48VDC

Load Capacity

1200N

Speed

3~60mm/s

Stroke

20~ 3 00mm (Optional)

Min Installation Dimensio

S≤300mm, A=105mm+S

S > 300mm, A=120mm+S

Limited Switch

Built-in

Operation Temperature

-26~65 °C

Protective Class

 IP65

Duty Cycle

S2-20min

Control Mode

Wired, Wireless

Covering Color

Black, Silvery white

Application

Furniture, Industry

Optional Fittings

Potentiometer





  • Size:  0.3*0.1*0.08
  • Place of Origin:  Shanghai,China
  • Brand Name:  Runhu
  • Model Number:  HB-DJ806
  • Weight: 0.300 kg
